Introduction
KP-3100 single phase energy reference meter is a high precious single phase energy reference meter,it uses the  advanced technology and latest electronic components available in the world, and use high speed DSP as the main processor to ensure the accuracy and long time stability.

1.1  Features and main function
1) voltage input:    50V—240V.
2) current input:    0.01A—100A.
3) CT work scope:    50％-120％
4) Test Mode:        1p2w watt    1p1w Var
Communication : RS232C Communication port

2. Technical specification
1) voltage input:   50V—240V
2) current input:   0.01A—100A.
(100/50/25/10/5/2.5/1/0.5/0.25/0.1/0.05/0.025)
3) CT work scope:  50％-120％
4) Test Mode:    1p2w watt    1p2w Var
5) Communication : RS232C Communication port
6) Fout:    fH=CH.p/3600        (Hz)

           fL=fH/10000        (Hz)

            Output mode: TTL

                                          Class 0.05           Class 0.1
Active power(energy)      0.05％                  0.1％
Reactive power(energy)   0.1％                   0.2％

9)Display
Display parameters: U(V)/I(A)/P(Watt)/S(VA)/Q(var)/ Pf (-1.0000—1.0000)/ θ(0o—360 o)/F(HZ)

10)Power supply: 220V±10％、50Hz/60 Hz
11)Power Consumption: 15VA
12)Warm UP time: < 30min
13)Working environment:
Temperature: 5℃—40℃
Humidity: ≤85％
14) Size: 482mm×420mm×140mm
15) Weight: 7kg

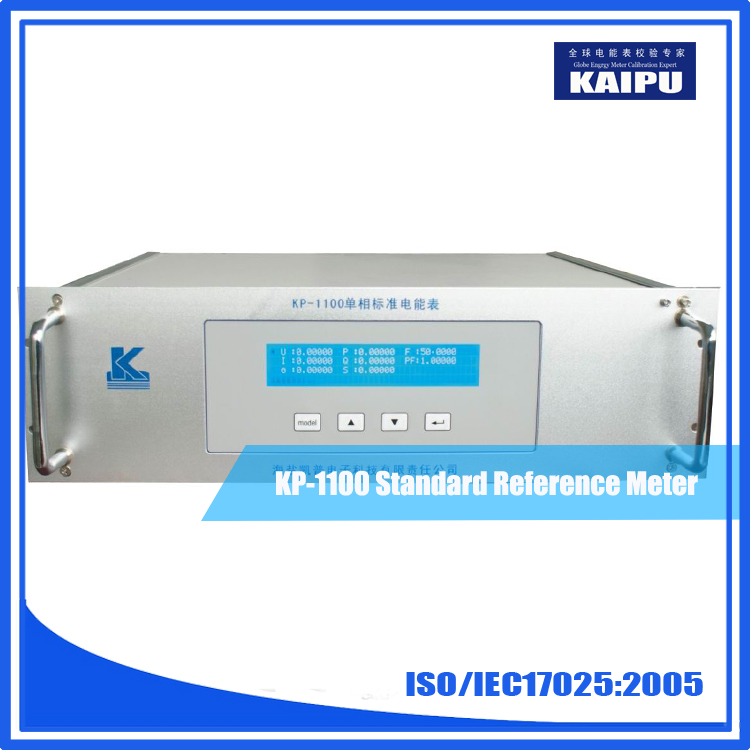

Please got KP-1100 specification in download or contact joe@cnkaipu.com
